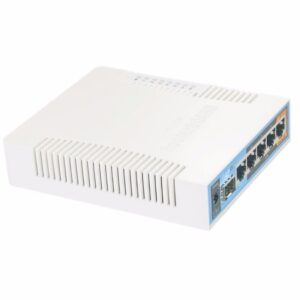

MikroTik RB962UiGS-5HacT2HnT hAP ac Dual-Band 2.4/5GHz AP 802.11ac/a/n/b/g

The MikroTik RB962UiGS-5HacT2HnT hAP ac is a powerful, versatile wireless access point designed for home or office use. It features dual-band Wi-Fi, providing concurrent coverage on 2.4GHz and 5GHz bands, and Gigabit Ethernet ports to fully utilize the high speeds of 802.11ac.

Equipped with advanced features like PoE-out, an SFP port for optical network connectivity, and a USB port for 3G/4G support or external storage, this device is perfect for a wide range of networking applications.

Product Features

• Dual-Band Wi-Fi: Simultaneous support for 2.4GHz (802.11b/g/n) and 5GHz (802.11a/n/ac) bands ensures compatibility and high-speed performance.
• Gigabit Ethernet Ports: Five 10/100/1000Mbps Ethernet ports for ultra-fast wired connections.
• SFP Port: Includes an SFP cage for active or passive optical network modules.
• PoE Output: Ethernet port 5 provides Passive PoE to power other MikroTik devices or compatible devices.
• USB Port: Supports 3G/4G modems or external storage devices.
• Omnidirectional Antennas: Provide flexible placement with reliable coverage for home, office, or public spaces.

Technical Specifications

General Details

• Product Code: RB962UiGS-5HacT2HnT
• CPU: QCA9558, 720MHz
• RAM: 128MB
• Storage: 16MB FLASH
• Operating System: RouterOS Level 4
• Dimensions: 114 x 137 x 29mm
• Temperature Range: -20°C to +60°C

Powering

• Maximum Power Consumption: 17W
• PoE Input Voltage: 11–57V (Passive PoE)
• DC Input Voltage: 11–57V
• PoE Output: Passive PoE on Ethernet port 5

Wireless

• 2.4GHz Band:
  • Standards: 802.11b/g/n
  • Chains: 3
  • Antenna Gain: 2.5dBi
  • Chip Model: QCA9558
• 5GHz Band:
  • Standards: 802.11a/n/ac
  • Chains: 3
  • Antenna Gain: 2dBi
  • Chip Model: QCA9880

Ethernet

• Ports: 5 x 10/100/1000Mbps Ethernet

Fiber

• SFP Ports: 1

Peripherals

• USB Ports: 1 (Type A)
• Max USB Current: 1A

Wireless Performance

2.4GHz Band:

Mode	Transmit Power (dBm)	Receive Sensitivity (dBm)
1 Mbps	29	-100
11 Mbps	29	-94
6 Mbps	29	-96
54 Mbps	26	-81
MCS0	29	-96
MCS7	25	-77

5GHz Band:

Mode	Transmit Power (dBm)	Receive Sensitivity (dBm)
6 Mbps	28	-96
54 Mbps	25	-81
MCS0	28	-96
MCS7	24	-77
MCS9	21	-72
