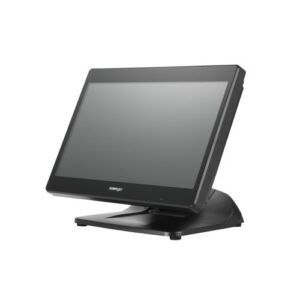

Posiflex PS-3616G2 All-In-One Touch POS System – 15.6″ PCAP Touchscreen, Intel J6412, Fanless Design

The Posiflex PS-3616G2 is a sleek, space-efficient, and high-performance POS terminal crafted for modern retail and hospitality environments. Powered by the Intel Elkhart Lake Celeron J6412 processor and featuring a 15.6” widescreen multi-touch display, this fanless POS system delivers reliability, responsiveness, and easy integration with a wide range of peripherals.

Product Features

15.6” True-Flat Widescreen Touch Display

Equipped with a 1366 x 768 resolution TFT LCD, the PS-3616G2 offers a projected capacitive (PCAP) multi-touch experience, ideal for fast-paced environments. The IP65-rated front panel resists dust and water splashes, ensuring durability even in demanding conditions.

Efficient Quad-Core Performance

Driven by the Intel Celeron J6412 processor (up to 2.60 GHz, 1.5MB cache), this system provides smooth and responsive performance for point-of-sale applications, inventory control, and more.

Expandable Memory and Storage

Comes with 4GB DDR4 RAM (expandable up to 32GB) and a fast 256GB SSD, allowing for rapid data access and seamless multitasking.

Rich Connectivity for Peripheral Integration

Connect easily to your essential POS hardware with 3 USB 3.0 ports, 3 serial ports, RJ50 serial with power support, VGA, LAN, and RJ11 cash drawer port. Optional PoweredUSB ports support even more advanced configurations.

Fanless and Silent Operation

Its fanless architecture ensures quieter operation and less maintenance, making it ideal for noise-sensitive or dusty environments.

Peripheral Flexibility

Add customer-facing displays such as a 7” color LCD, 2 x 20 rear line display, or integrate MSR, iButton, RFID, or a Fingerprint Sensor for added security and customization.

Energy Efficient & Compact

Designed for low power usage (12V/60W supply) and compact installation, it’s perfect for businesses with limited counter space.

Product Specifications

• Processor: Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5MB Cache
• Memory: 4GB DDR4 (expandable up to 32GB)
• Storage: 256GB SSD
• Display: 15.6” TFT LCD, 1366 x 768 resolution
• Touch Panel: True-flat PCAP multi-touch, IP65-rated front
• I/O Ports:
  • 3 x DB9 Serial, 1 x RJ50 Serial (5V/12V support)
  • 2 x USB 3.0, 3 x USB 2.0
  • 1 x VGA
  • 1 x RJ11 (cash drawer port)
  • 1 x LAN (Gigabit Ethernet)
  • Optional: 24V x1, 12V x3 PoweredUSB
• Expansion: M.2 slot for optional WiFi/Bluetooth module
• Operating System: Supports Windows 10 IoT LTSC and Windows 11 IoT LTSC
• Power Supply: 12V/60W
• Dimensions: 372 mm (W) x 252.7 mm (D) x 291.4 mm (H)
• Weight: 4.7 kg
• Operating Conditions: 0°C to 40°C; 20% – 90% RH
• Attachment Options: MSR, iButton, RFID, 2D Barcode Scanner, Fingerprint Sensor, Keypad

What’s in the Box

• 1 x Posiflex PS-3616G2 All-In-One Touch POS System
• 1 x Power Adapter

Ideal For:

• Retail environments (clothing stores, convenience stores)
• Restaurants, cafés, and food service counters
• Hotels and front-desk operations
• Healthcare check-in and pharmacy POS stations
