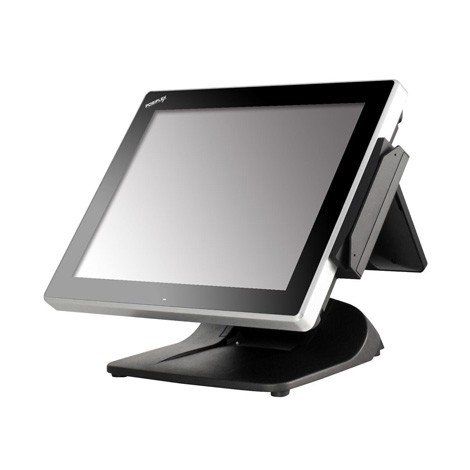

Posiflex XT-3915IR White All-in-One Touch POS Terminal – 15” IR Touchscreen, Intel J1900, Flexible OS Support

The Posiflex XT-3915IR White is a stylish and dependable all-in-one POS terminal built for high-performance environments in retail, hospitality, healthcare, and more. Powered by the Intel Bay Trail J1900 Quad-Core CPU and featuring a durable 15-inch infrared touchscreen, this terminal offers both modern aesthetics and robust functionality to streamline your operations.

Product Features

Quad-Core Performance for Demanding Workloads

Equipped with an Intel Bay Trail J1900 Quad-Core processor (up to 2.42 GHz), the XT-3915IR ensures responsive and reliable processing power for POS applications, customer management, and inventory systems.

Expandable DDR3L Memory

Supports up to 8GB DDR3L RAM via SO-DIMM slot, providing flexibility for smooth multitasking and improved overall efficiency.

Flexible Storage Options

Offers dual SATA interfaces for HDD or SSD, with optional eMMC module support. Tailor your storage configuration to match your performance and durability needs.

Durable 15” IR Touch Display

The 15-inch TFT LCD with Infrared (IR) touch technology offers precise touch responsiveness and long-lasting durability—ideal for high-volume, touchscreen-heavy operations.

Extensive Connectivity

Includes 4 serial ports, 7 USB ports, Gigabit Ethernet, and VGA output. Expand system capability with mini-PCIe, PoweredUSB, UPS port, and optional WiFi/Bluetooth module.

Broad Operating System Compatibility

Compatible with multiple platforms including Windows 7, POSReady 7, Windows Embedded 8.1, Windows 10 IoT, and Linux (upon request)—offering flexibility for custom POS setups.

Compact and Elegant White Design

The clean white chassis complements modern interiors, while the GEN 7E base ensures stability in fast-paced environments. A professional solution that balances aesthetics with performance.

Product Specifications

• Processor: Intel Bay Trail J1900, Quad-Core (up to 2.42 GHz, 2M Cache)
• Memory: 1 x DDR3L SO-DIMM, up to 8GB
• Storage: 2 x SATA (HDD/SSD), optional eMMC module
• Display: 15” TFT LCD, 1024 x 768 resolution
• Touch Panel: Infrared (IR) touch technology
• Ports:
  • 4 x Serial (DB9 x3, RJ50 x1 with 5V/12V support)
  • 7 x USB (1 x USB 3.0, 6 x USB 2.0)
  • 1 x LAN (Gigabit Ethernet)
  • 1 x VGA (12V for Posiflex monitors)
  • 1 x Cash Drawer (supports 2 CR with optional Y-cable)
  • 1 x Parallel (via optional cable)
  • 1 x PS/2 (via optional cable)
• Expansion Slot: 1 x Mini-PCIe
• Optional Features: WiFi/Bluetooth via Mini-PCIe, PoweredUSB, UPS port
• Power Supply: 12V/60W
• Dimensions: 372 x 320 x 252.7 mm
• Weight: 5.6 kg
• Operating Temperature: 0°C – 40°C (HDD), 0°C – 50°C (SSD)
• Storage Temperature: -20°C – 70°C
• Humidity: 20% – 90% RH (operating), 10% – 90% RH (storage)

Ideal Applications

• Retail Stores: Fashion boutiques, electronics shops, convenience stores
• Restaurants & Hospitality: Quick-service counters, bars, cafés, hotels
• Healthcare & Pharmacies: Patient check-in points, prescription counters
• Supermarkets & Chain Stores: Checkout counters, inventory stations
