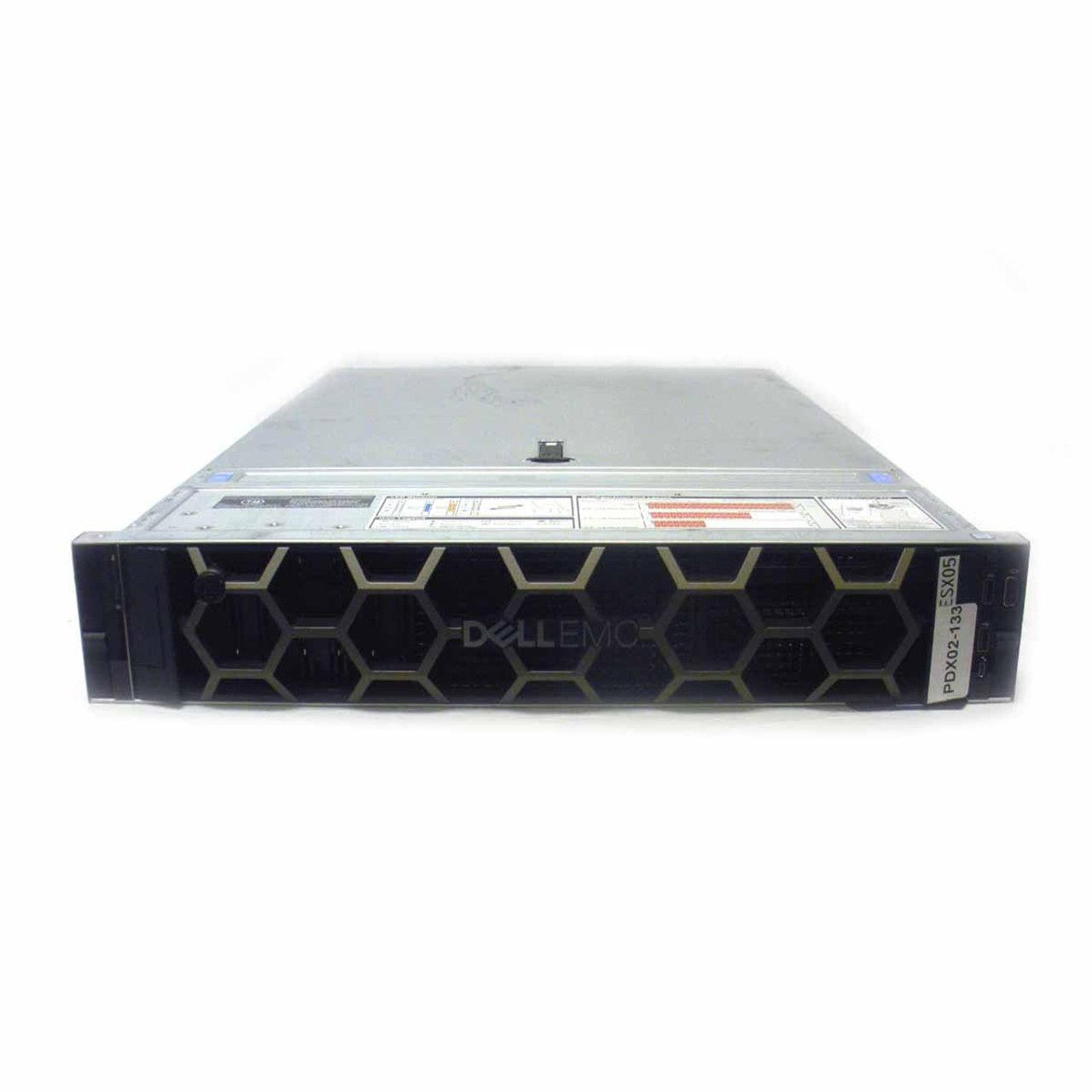

Dell PowerEdge R740 Rack Server PER740MM1

The Dell PowerEdge R740 is a high-performance 2U rack server designed to power a wide range of demanding enterprise workloads. With support for Intel Xeon Scalable processors, large memory capacities, and flexible storage configurations, the R740 offers outstanding performance and scalability for virtualization, data analytics, and high-performance computing. The PER740MM1 configuration comes equipped with a balanced blend of compute power, memory, and storage to meet the needs of modern data centers.

Product Features

High-Density Rackmount Chassis

The R740 features a 2U rackmount design with support for up to 16 x 2.5-inch SAS/SATA drives, delivering a dense and scalable storage solution for enterprise environments.

Intel Xeon Silver 4210 Processor

Equipped with an Intel Xeon Silver 4210 CPU offering 10 cores, 20 threads, 2.2GHz base frequency, and support for Turbo Boost and Hyper-Threading, providing reliable performance for compute-intensive tasks.

Scalable Memory Architecture

Supports up to 24 DDR4 DIMM slots and a maximum memory capacity of up to 3TB, with this configuration including 16GB RDIMM at 3200MT/s for efficient multitasking and application performance.

Enterprise-Grade Storage Configuration

Comes pre-installed with 3 x 1.2TB 10K RPM SAS 12Gbps 512n 2.5-inch hot-plug drives, delivering high-speed and reliable storage access with RAID support for data protection.

Advanced RAID and Connectivity

Features the Dell PERC H730P RAID Controller with 2GB NV cache for hardware RAID performance and data security. Includes Broadcom 5720 Quad-Port 1GbE network card for versatile connectivity.

Simplified Management

Includes iDRAC9 Express for streamlined remote management and monitoring, reducing downtime and improving IT efficiency.

Redundant Power Supply

Comes with dual 495W redundant power supplies for improved system uptime and reliability in mission-critical environments.

Product Specifications

• Chassis: 2U Rackmount with up to 16 x 2.5″ SAS/SATA drives (single CPU configuration)

• Processor: Intel Xeon Silver 4210, 10-core / 20-thread, 2.2GHz, 13.75MB Cache, DDR4-2400

• Memory: 16GB RDIMM, 3200MT/s, Dual Rank

• Storage: 3 x 1.2TB 10K RPM SAS 12Gbps 512n 2.5″ Hot-Plug HDDs

• RAID Controller: PERC H730P, 2GB NV Cache, Mini Card

• Network Interface: Broadcom 5720 Quad Port 1GbE BASE-T (rNDC)

• Optical Drive: DVD+/-RW SATA Internal

• Rails: ReadyRails Sliding Rails (No Cable Management Arm)

• Bezel: Standard

• Remote Management: iDRAC9 Express

• Power Supply: Redundant 495W Power Supply (2 x 495W)
