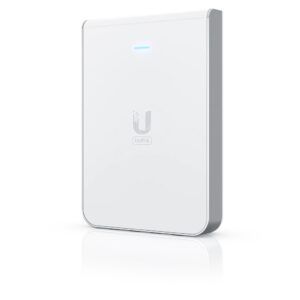

Ubiquiti UniFi 6 In-wall Access Point (U6-IW)

The Ubiquiti UniFi 6 In-wall Access Point (U6-IW) is a compact, high-performance wireless access point designed for easy installation within walls, offering seamless Wi-Fi coverage with Wi-Fi 6 (802.11ax) technology. Ideal for home or office environments where a discreet, integrated solution is needed, the U6-IW brings the latest wireless technology to spaces with minimal disruption to aesthetics.

Product Features

Wi-Fi 6 (802.11ax) Support

• Enhanced Performance: Wi-Fi 6 offers faster speeds, higher capacity, and better performance in congested environments, supporting more devices simultaneously.
• Backward Compatibility: Works with older Wi-Fi standards (Wi-Fi 4, Wi-Fi 5), ensuring compatibility with a wide range of devices.

In-wall Design

• Discrete Installation: The U6-IW is designed to be installed directly into a standard electrical wall outlet or network junction box, offering a sleek and inconspicuous solution for Wi-Fi coverage.
• Compact Form Factor: Measures 5.5 x 3.78 x 1.28 inches (139.66 x 96 x 31.19 mm) and weighs 1.01 lb (460 g), ensuring it fits easily in most wall-mounted locations.

Dual-Band Operation

• Simultaneous 2.4 GHz & 5 GHz Bands: Provides high-speed Wi-Fi connectivity on both bands, with the 2.4 GHz band offering 573.5 Mbps and the 5 GHz band supporting 4.8 Gbps speeds.
• Improved Device Handling: Features MU-MIMO and OFDMA technologies to efficiently handle multiple devices and improve overall network capacity.

MIMO Technology

• 2 x 2 (UL MU-MIMO) on 2.4 GHz
• 4 x 4 (DL/UL MU-MIMO) on 5 GHz
• Higher Data Throughput: Ensures faster connections, even in dense environments, by enabling multiple devices to communicate with the access point simultaneously.

Power over Ethernet (PoE)

• Simplified Installation: Powered through a PoE+ switch, eliminating the need for additional power outlets.
• Power Consumption: 13.5W maximum (excluding PoE output), making it energy-efficient while delivering high-performance Wi-Fi.

Ethernet Ports

• 1 Gigabit Ethernet Data-in Port for uplink.
• 4 Gigabit Ethernet Data-out Ports for wired connections, supporting devices like computers or printers, and enabling Ethernet-based devices in the area to access the network.

Advanced Features

• Seamless Roaming: Devices connected to the U6-IW can move freely between UniFi access points with minimal disruption.
• Guest Networking: Supports VLAN (Virtual LAN) configurations and guest traffic isolation, allowing for secure guest access.
• Quality of Service (QoS): Features per-user rate limiting for better control of bandwidth usage.

Software Management

• UniFi Controller: Managed and configured using the UniFi Network Controller or mobile app for a centralized, intuitive management experience.
• Advanced Security Features: WPA3 encryption, along with options for WPA-PSK, WPA-Enterprise for strong wireless security.

Environmental Specifications

• Operating Temperature: -30°C to 60°C (-22°F to 140°F), suitable for various indoor environments.
• Operating Humidity: 5% to 95% non-condensing, ideal for most climate conditions.

Wireless Data Rates (Wi-Fi 6)

• 2.4 GHz: 7.3 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
• 5 GHz: 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11, HE 20/40/80/160)
