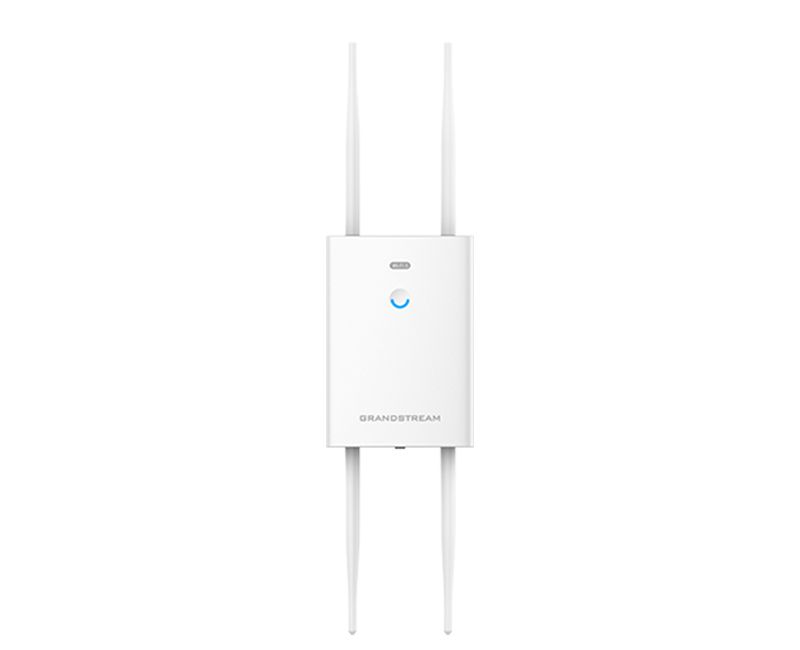

Grandstream GWN7664LR Outdoor Long Range WiFi 6 Access Point

Original price was: KSh45,000.Current price is: KSh38,000. Exc. VAT

3.55Gbps aggregate wireless throughput
Dual-band 4×4:4 MU-MIMO
Self power adaptation

IMPORTANT NOTICE !!!

Confirm prices and availability of an item before committing an order
Customers can order via sales@rapidtech.co.ke or call/WhatsApp/SMS +254722555289 ; +254755555289
We cannot guarantee 100% accuracy of product information on this page
Refer our terms and conditions before using our services

Description
Reviews (0)

Grandstream GWN7664LR Outdoor Long Range WiFi 6 Access Point

The Grandstream GWN7664LR is an outdoor 802.11ax 4×4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network through that supports 750 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664LR includes a built-in controller embedded within the product’s web user interface.

Grandstream GWN7664LR Key Features:

3.55Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughout
Dual-band 4×4:4 MU- MIMO with DL/UL OFDMA technology
Self power adaptation upon auto detection of PoE or PoE+
Support 750+ concurrent Wi-Fi client devices
Up to 300-meter coverage range
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown
Flexibility of 4 detachable/changeable antennas for different application scenarios
Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+, the GWN7664LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

GWN7664LR Technical Specifications

Wi-Fi Standards

IEEE 802.11 b/g/n/ac/ax

Antennas

4 dual band external antennas
2.4GHz, gain 3.5dBi
5 GHz, gain 3.5dBi
Wi-Fi Data Rates

5G

IEEE 802.11ax: 8 Mbps to 2402 Mbps IEEE
802.11ac: 6.5 Mbps to 1733 Mbps IEEE
802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

2.4G

IEEE 802.11ax: 8 Mbps to 2402 Mbps IEEE
802.11ac: 6.5 Mbps to 1733 Mbps IEEE
802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Frequency Bands

2.4GHz radio: 2412 – 2484 MHz
5GHz radio: 5180 – 5825 MHz
*Not all frequency bands can be used in all regions

Channel Bandwidth

2.4G: 20 and 40 MHz (x4) 5G: 20, 40 and 80 MHz (x4)
5G: 20, 40 and 80 MHz (x4

System Security

WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical
data/control lockdown via digital signatures, unique security certificate and random default password
per device
MU-MIMO 4×4:4 2.4GHz, 4×4:4 5GHz
Coverage Range Up to 300 meters
*Coverage range can vary based on environment
Maximum TX Power

2.4

802.11b: -99dBm@1Mbps, -91dBm@11Mbps;
802.11g: -94dBm @6Mbps, -78dBm@54Mbps;
802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11

5G

802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
802.11n: 20MHz: -74dBm @MCS7; 802.11 n 40MHz: -71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @
MCS11

SSIDs

32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients 750+

Network Interfaces

1x 1G Port and 1x 2.5G Port, support 2.5Gbps aggregate wired throughout

Auxiliary Ports

1x Reset Pinhole
Mounting
Wall mount or pole mount, kits included

LEDs

1 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

QoS

802.11e/WMM, VLAN, TOS

Network Management

Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs

Power and Green Energy

Efficiency
PoE 802.3af/ 802.3at;
Maximum Power Consumption: 18W

Environmental

Operation:-30°Cto 60°C
Storage: -30°C to 60°C
Humidity: 10% to 90% Non-condensing

Physical

Unit Dimension: 562.3mm(L)x140mm(W)x44.9mm(H);
Unit + Mounting Kits Dimension: 562.3mm(L)x140mm(W)x66.9mm(H)

Entire Package;

Dimension: 260mm(L)x218.5mm(W)x108mm(H);

Package Content

GWN7664LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide

Weatherproof

Grade IP66-level weatherproof capability when installed vertically

Compliance

FCC, CE, RCM, IC, UKCA

Check out our Grandstream store in Kenya for more high-quality Grandstream access points in Kenya at the best prices, as well as a wide range of alternatives to match your requirements. As an established Grandstream dealer in Kenya, we guarantee that all products include a limited manufacturer warranty for your peace of mind. Browse our website to explore our extensive inventory and take advantage of our competitive prices.
