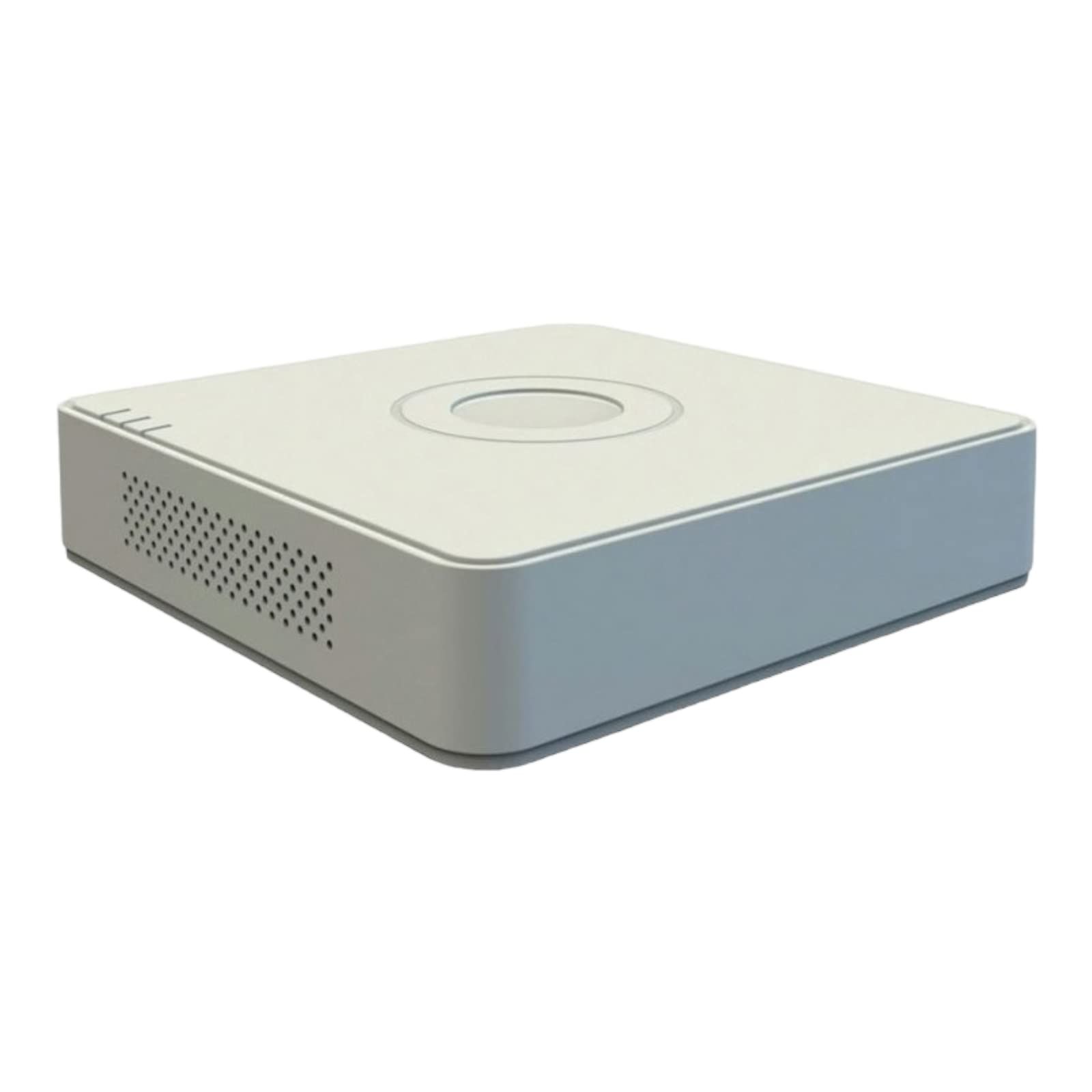

Hikvision 3K 4CH DVR 1HDD – iDS-7104HQHI-M1/S(STD)(C)

The Hikvision iDS-7104HQHI-M1/S(STD)(C) 3K 4-Channel DVR is an AI-powered digital video recorder designed for small to medium-sized surveillance setups. With support for 3K resolution recording, this DVR delivers superior image clarity for enhanced security monitoring. Featuring H.265+ compression, it significantly reduces bandwidth and storage usage while maintaining high-quality video output. It also includes advanced AI functions, smart motion detection, remote access via Hik-Connect, and multi-format camera compatibility. This compact yet powerful DVR is ideal for homes, offices, retail stores, and small businesses looking for an intelligent and efficient surveillance solution.

Product Features

4-Channel 3K Resolution for High-Definition Surveillance

The iDS-7104HQHI-M1/S(STD)(C) supports up to 4 HD analog cameras with 3K (5MP Lite) resolution, providing ultra-clear footage for detailed security monitoring. This ensures better visibility of faces, license plates, and critical objects.

H.265+ Video Compression for Efficient Storage

With H.265+ video compression technology, the DVR reduces bandwidth and storage consumption while maintaining superior video quality. This allows for longer recording durations and optimized storage management.

AI-Powered Smart Motion Detection (SMD)

This DVR features AI-enhanced Smart Motion Detection (SMD), which differentiates between humans and vehicles while reducing false alarms triggered by objects like animals, trees, or shadows.

HDMI & VGA Output for High-Quality Display

Equipped with HDMI and VGA outputs, this DVR supports resolutions up to 2560×1440, ensuring high-definition playback for clear video analysis on compatible monitors.

Remote Access & Mobile Viewing via Hik-Connect

With Hik-Connect app support, users can monitor live and recorded footage remotely from their smartphones, tablets, or computers. This allows for real-time security management anytime, anywhere.

Multi-Format Camera Compatibility

The iDS-7104HQHI-M1/S(STD)(C) is compatible with multiple camera formats, including TVI, AHD, CVI, and CVBS, offering flexibility in integrating different camera technologies within the same system.

Customizable Recording Modes

Users can choose from continuous, motion detection, or scheduled recording modes, allowing for customized security preferences and optimized storage usage.

Compact 1HDD 1U Design for Easy Installation

With a compact 1HDD 1U form factor, this DVR is easy to install in space-constrained environments while offering high-performance security recording.

Product Specifications

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle AnalysisUp to 2-ch

Facial Detection

• Facial Detection and CaptureFace picture detection, face picture search

Video and Audio

• IP Video Input

  1-ch (up to 5-ch)

  Enhanced IP mode on:

  2-ch (up to 6-ch), each up to 4 Mbps

  Up to 6 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  4-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input

  1-ch, RCA (2.0 Vp-p, 1 KΩ)

  4-ch via coaxial cable

• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Two-Way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback4-ch

Recording

• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Mainstream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps
• Dual-streamSupport
• Stream TypeVideo, Video & Audio
• Audio Compression G. 711u
• Audio Bitrate64 Kbps

Network

• Total Bandwidth72 Mbps
• Remote Connection32
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Wi-FiConnectable toa  Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

• SATA1 SATA interface
• Capacity: Up to 10 TB capacity for each disk
• Alarm In/OutN/A
• USB InterfaceReal panel: 2 × USB 2.0

General

• Power Supply 12 VDC, 1.5 A
• Consumption≤ 8 W (without HDD)
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
• Weight≤ 1 kg (without HDD, 2.2 lb.)
