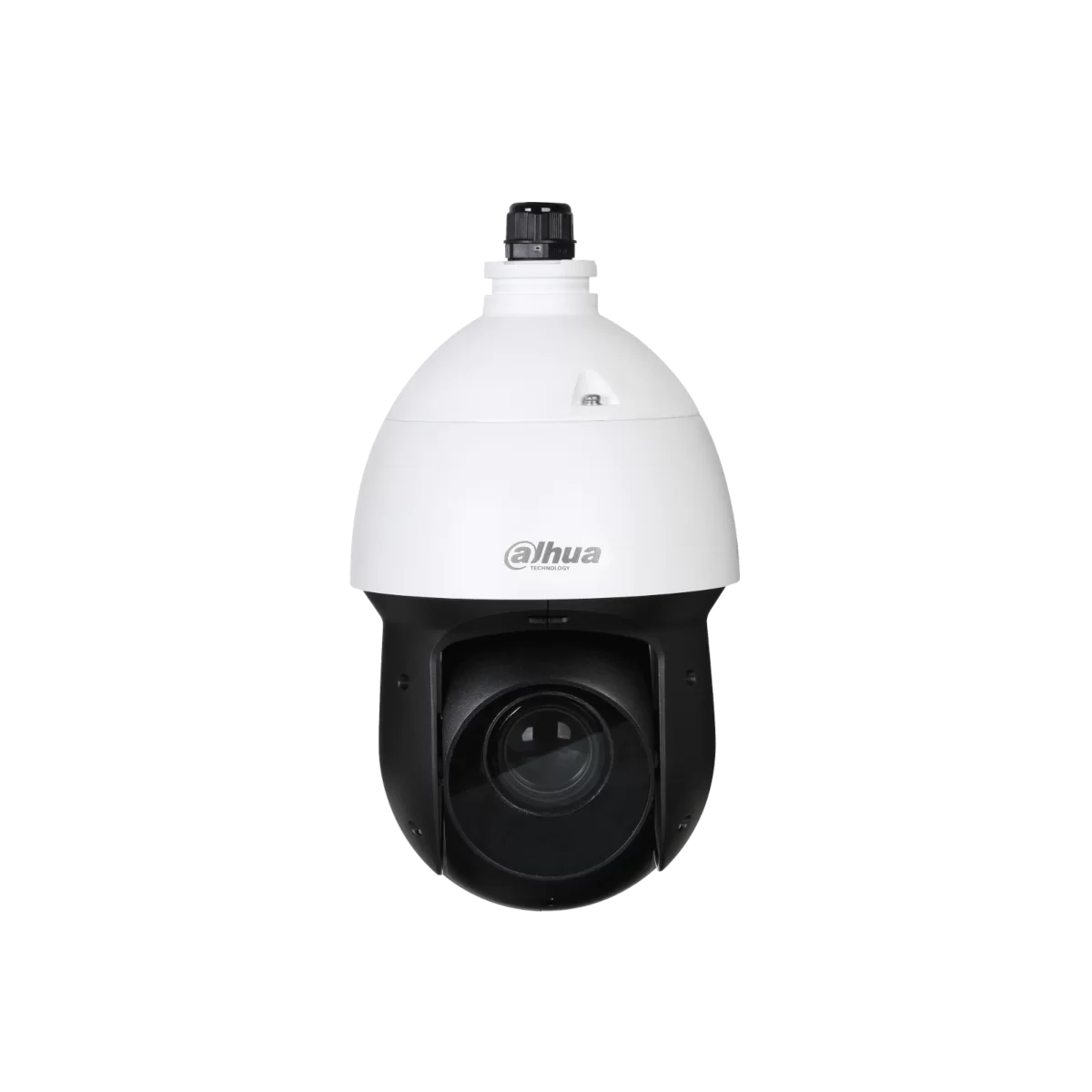

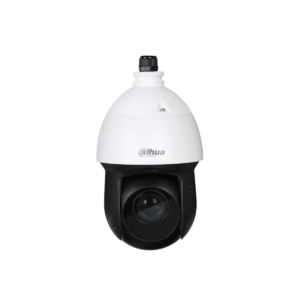

Dahua DH-SD49425 4MP PTZ Network Camera

The Dahua DH-SD49425 is a high-performance 4MP PTZ (Pan-Tilt-Zoom) network camera designed for flexible surveillance in a variety of environments. With its advanced features, including a 25x optical zoom, wide-angle field of view, and AI-powered intelligence capabilities, this camera provides precise and adaptable monitoring. It supports high-definition video resolution up to 4MP and offers exceptional low-light performance. With its robust build, the camera is ideal for outdoor applications and harsh environments, providing enhanced security with intelligent features such as smart motion detection, face recognition, and advanced video compression.

Product Features

25X Optical Zoom

The Dahua DH-SD49425 offers a 25X optical zoom with a focal length of 5~125 mm, allowing for detailed and clear images even at distant locations. This makes it ideal for surveillance over large areas, such as parking lots, building perimeters, and city streets.

Intelligent Video Analytics (IVS)

Equipped with advanced IVS (Intelligent Video Surveillance) features, this camera supports perimeter protection through capabilities such as tripwire detection, intrusion detection, people gathering, and vehicle/person classification. It can also perform loitering detection, abandoned/missing object detection, and parking detection, making it highly adaptable for different security needs.

Day/Night Functionality with Smart IR

The camera has true day/night functionality with an ICR (Infrared Cut Filter) and Smart IR, ensuring clear imaging both during the day and night. Its low-light sensitivity is remarkable, capturing color images at just 0.005 lux and black-and-white images at 0.0005 lux, and the IR illumination reaches up to 100 meters.

Pan and Tilt Control

The pan and tilt controls allow for comprehensive surveillance coverage. The camera supports an endless 360° pan range and a tilt range from -15° to +90°, including an auto-flip function. With adjustable speeds for both pan and tilt, users can achieve precise control and rapid camera movement.

Product Specifications

• Resolution: 4MP (2560×1440), 3MP, 1080p, 720p, and lower resolutions
• Compression Formats: H.264, H.265, MJPEG, Smart H.265+
• Frame Rate: Main stream up to 4MP @ 25/30 fps; Sub-streams at lower resolutions
• Lens: 25X optical zoom (focal length 5~125 mm), 16X digital zoom
• Field of View: Horizontal: 53.1°–3.4°, Vertical: 30.4°–1.9°, Diagonal: 59.3°–3.9°
• IR Range: Up to 100 meters with Smart IR
• Pan/Tilt Range: 360° endless pan, tilt: -15° to +90°, auto flip
• Intelligent Features: IVS, face detection, perimeter protection, SMD (Smart Motion Detection)
• Audio: 1 audio input and 1 audio output
• Alarm: 2 alarm inputs and 1 alarm output
• Storage: MicroSD card slot (up to 512GB), FTP/SFTP, NAS
• Power: 12V DC, PoE+ (802.3at)
• Weatherproofing: IP66 rating, suitable for outdoor use
• Operating Temperature: -40°C to +70°C
• Dimensions: 160 x 270.4 mm (H)
• Weight: 2.4 kg (net weight)
