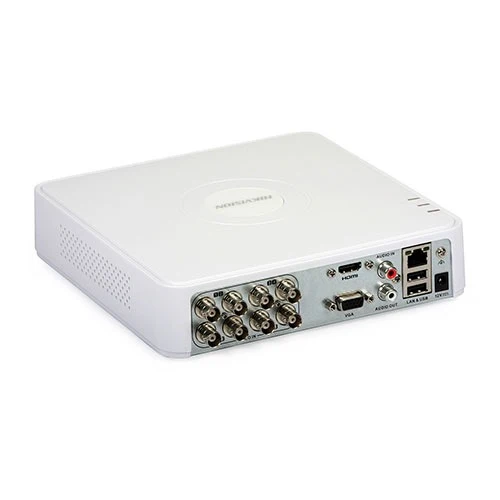

Hikvision DS-7108HGHI-M1 8-ch 720p Mini 1U H.265 DVR

The Hikvision DS-7108HGHI-M1 8-Channel 720p Mini 1U H.265 DVR is a reliable and cost-effective digital video recorder designed for small to medium-sized surveillance systems. Equipped with advanced H.265+ video compression technology, this DVR efficiently reduces storage space while maintaining high-quality video footage. It supports up to 8 analog HD cameras with a resolution of 720p, ensuring clear and detailed recordings. Featuring remote access, smart playback, and multiple video output options, this compact yet powerful DVR is perfect for home security, small businesses, and retail surveillance applications.

Product Features

8-Channel HD Input for Enhanced Surveillance

The DS-7108HGHI-M1 supports up to 8 high-definition (HD) analog cameras, allowing comprehensive coverage of your property. With support for 720p HD resolution, the system ensures crisp and clear footage for effective monitoring and security.

H.265+ Video Compression for Efficient Storage

Utilizing H.265+ video compression, this DVR significantly reduces bandwidth and storage consumption without compromising video quality. This advanced compression technology allows for longer recording times while using less storage space, making it ideal for users looking to maximize hard drive efficiency.

Multiple Video Output Options

The DVR features both HDMI and VGA outputs, ensuring flexible connectivity with a wide range of monitors and display systems. With a maximum resolution output of 1920×1080, users can view high-quality footage with clarity and detail.

Smart Playback for Easy Footage Review

The smart playback feature allows users to quickly review recorded footage, automatically skipping irrelevant scenes while highlighting moments with detected motion. This saves time when searching for important events, making it a user-friendly and efficient solution for security monitoring.

Remote Access & Mobile Viewing

With Hik-Connect and third-party platform support, users can access live and recorded footage remotely via smartphones, tablets, or computers. Whether you’re at home, in the office, or on the go, you can monitor your surveillance system in real time with ease.

Support for Multiple Camera Formats

The DS-7108HGHI-M1 is compatible with a variety of camera formats, including TVI, AHD, CVI, and traditional analog cameras, offering flexibility in integrating different camera technologies within the same system.

Customizable Recording Modes

The DVR supports continuous, motion detection, and scheduled recording modes, giving users the flexibility to optimize recording settings based on their security needs. Motion-based recording helps conserve storage by only capturing footage when activity is detected.

Compact 1U Mini Design for Easy Installation

Designed in a mini 1U form factor, the compact size of this DVR allows for easy installation in space-constrained environments. Its durable and energy-efficient design ensures reliable long-term operation.

Product Specifications

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Video and Audio

• IP Video Input

  2-ch (up to 10-ch)

  Up to 5 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  8-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input

  1-ch RCA (2.0 Vp-p, 1 KΩ)

  8-ch via coaxial cable

• Audio Output 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio Reuse the first audio input
• Synchronous playback8-ch

Recording

• Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF

  For SD stream access: WD1/4CIF/VGA/CIF

• Frame Rate

  Main stream:

  For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

  For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

  For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  For 1080p and 720p stream access CIF/QVGA@15 fps

  For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 4 Mbps
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

Network

• Total Bandwidth72 Mbps
• Remote Connection64
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
• Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA1 SATA interface
• Capacity to 4 TB capacity for each disk
• USB Interface Rear panel: 2 × USB 2.0
• Alarm In/OutN/A

General

• Power Supply 12 VDC, 1.5 A
• Consumption≤ 17 W (without HDD)
• Working Temperature-10 °C to 55 °C (14 °F to +31 °F)
