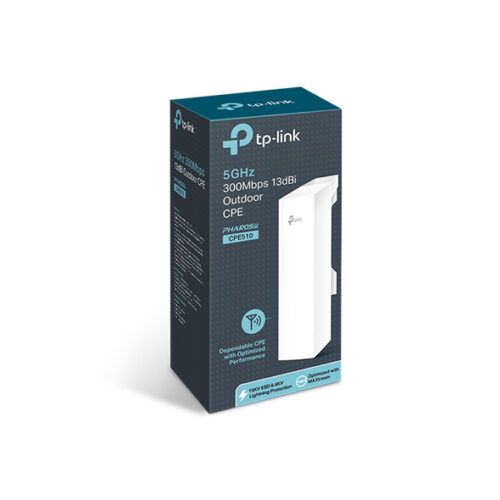

TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE – TL-CPE510

The TP-Link CPE510 is a high-performance outdoor CPE solution designed for long-range wireless networking in the 5GHz band. Featuring a built-in 13dBi dual-polarized directional antenna, powerful radio transmission, and centralized management via Pharos Control, this device is ideal for point-to-point (PtP), point-to-multipoint (PtMP), and outdoor Wi-Fi coverage applications.

Product Features

Long-Range Wireless Transmission

Delivers stable and reliable connectivity for distances exceeding 15km, supported by a high-gain 13dBi 2×2 dual-polarized directional antenna.

Enhanced Throughput with TDMA

TP-Link’s Pharos MAXtream TDMA technology reduces latency and increases network capacity, making it ideal for PtMP environments.

Rugged Outdoor Design

Built to endure harsh environments with IPX5 waterproof protection, 15KV ESD, and 6KV lightning protection.

Powerful Performance

Powered by a 560 MHz Qualcomm Atheros CPU, the CPE510 supports wireless speeds up to 300Mbps on 802.11a/n, with adjustable transmission power up to 23 dBm (200mW).

Flexible Operation Modes

Supports AP, Client, AP Router, and AP Client Router (WISP) modes for a wide range of deployment scenarios.

Centralized Management

Remotely monitor and manage your network through the Pharos Control software and a user-friendly web interface.

Simplified Installation

Supports Passive PoE up to 60 meters, allowing flexible and convenient deployment with remote reset capabilities.

Technical Specifications

Hardware

• Processor: Qualcomm Atheros MIPS 74Kc, 560 MHz
• Memory: 64 MB DDR2 RAM, 8 MB Flash
• Ports:
  • 1 × 10/100 Mbps Shielded Ethernet (Passive PoE In)
  • 1 Grounding Terminal
  • 1 Reset Button
• Power Input: 16–27 V DC via Passive PoE
• Power Consumption: Max 10.5W
• Dimensions: 8.8 × 3.1 × 2.4 in
• Enclosure: Outdoor ASA-stabilized plastic, IPX5-rated

Antenna

• Type: Built-in 2×2 MIMO Dual-Polarized Directional
• Gain: 13 dBi
• Beamwidth: 45° (H-Plane), 30° (E-Plane)

Wireless

• Frequency Range: 5.15–5.85 GHz (Varies by region)
• Standards: IEEE 802.11a/n
• Max Wireless Speed:
  • 300 Mbps (40 MHz)
  • 144.4 Mbps (20 MHz)
  • 72.2 Mbps (10 MHz)
  • 36.1 Mbps (5 MHz)
• Transmit Power: 0–23 dBm (adjustable in 1 dBm steps)
• Proprietary Protocol: TDMA (Pharos MAXtream)

Software Features

Wireless Configuration

• TDMA Technology via Pharos MAXtream
• Selectable Channel Widths: 5/10/20/40 MHz
• Dynamic Frequency Selection (DFS)
• RF Power Control
• WDS Support
• Multi-SSID with VLAN Tagging (AP mode)
• SSID Broadcast Toggle
• Security: WPA/WPA2, WPA-PSK/WPA2-PSK, AES/TKIP, WEP 64/128/152-bit

Network & Management

• Web Interface: HTTP/HTTPS
• Remote Management: Pharos Control
• Diagnostic Tools: Ping, Traceroute, Spectrum Analyzer, Speed Test
• Monitoring: Signal Strength, CCQ, CPU, Memory, Station Info
• System Tools: SNMP v2c, DDNS, SSH, Watchdog, System Log
• Optimizations: IGMP Snooping/Proxy for multicast

PoE Adapter

• Dimensions: 4.3 × 2.2 × 1.3 in
• Ports:
  • 1 × Shielded Ethernet (Power + Data)
  • 1 × Shielded Ethernet (Data Only)
• Input: 100–240 VAC, 50/60 Hz
• Output: 24 V DC, 1 A Max
• Max Distance: Supports up to 60m over Ethernet
• Efficiency: >80%
• Features: Remote Reset Button, Power Status LEDs

Certification & Compliance

• Certifications: FCC, RoHS, CE, IPX5
• Operating Temperature: -30°C to 70°C (-22°F to 158°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 10%–90% Operating, 5%–95% Storage (Non-condensing)

Package Contents

• TP-Link CPE510 Outdoor Wireless CPE
• 24V 1A Passive PoE Adapter
• Pole Mounting Straps
• AC Power Cord
• Installation Guide

Recommended Applications

• Point-to-Point Links: Extend network access between buildings or sites over long distances.
• Point-to-Multipoint Deployments: Efficiently serve multiple clients with stable, synchronized connections.
• Outdoor Wi-Fi Coverage: Provide strong wireless signal across campuses, farms, or industrial zones.
