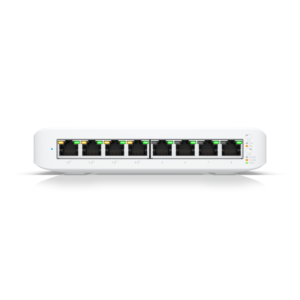

Ubiquiti UniFi Switch Lite 8 PoE (USW-Lite-8-POE)

The Ubiquiti UniFi Switch Lite 8 PoE (USW-Lite-8-POE) is a compact, fully managed Layer 2 switch that offers eight Gigabit Ethernet ports, including four PoE+ (Power over Ethernet) ports. With a total PoE budget of 52W, the switch provides power to PoE-compatible devices such as UniFi Access Points, security cameras, and VoIP phones. The switch is designed for easy setup and management through the UniFi Controller or mobile app, making it ideal for both home and small to medium-sized business networks. Its wall-mountable design and external power supply ensure flexibility in installation while maintaining low power consumption and silent operation.

Product Features

Eight Gigabit Ethernet Ports

The USW-Lite-8-PoE features eight 10/100/1000 Mbps Ethernet ports, providing high-speed connectivity for a range of devices, including computers, printers, and network storage. These ports ensure reliable performance for both data and PoE-enabled devices.

Power Over Ethernet (PoE+) Support

Four of the eight ports on the USW-Lite-8-PoE support IEEE 802.3at PoE+, delivering up to 30W of power per port with a total PoE budget of 52W. This is perfect for powering PoE devices such as access points, IP cameras, and VoIP phones, reducing the need for separate power supplies and simplifying network installations.

Centralized Management via UniFi Controller

The USW-Lite-8-PoE is managed via the UniFi Network Controller, which provides a centralized interface for configuring, monitoring, and controlling the switch and other UniFi devices. The UniFi Controller, along with the UniFi mobile app, allows administrators to access and manage their network from anywhere with an internet connection, making it easier to handle network tasks and troubleshoot issues.

Wall-Mountable Design

This switch comes with a wall-mounting kit, allowing for easy and neat installation in a variety of settings, from small offices to home networks. Its compact and sleek design ensures that it fits in tight spaces while maintaining a professional appearance.

Product Specifications

• Dimensions: 99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25 inches)
• Weight: 450g (15.87 oz)
• Total Non-Blocking Line Rate: 8 Gbps
• Max Power Consumption: 8W
• Power Method: 54VDC, 1.1A External Power Adapter
• Power Supply: External 54V/60W Power Adapter
• Supported Voltage Range: DC 50V to 57V
• Networking Interfaces: (8) 10/100/1000 Mbps Ethernet RJ45 ports
• PoE+ Interfaces: (4) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
• Management Interface: Ethernet In-Band
• Max PoE+ Wattage per Port: 30W
• Modes: SMB Layer 2 PoE Gigabit Ethernet Switch
• Operating Temperature: -15 to 40°C (5 to 104°F)
• Operating Humidity: 10-90% Non-condensing
• Certifications: CE, FCC, IC

LED Indicators

• System LED:
  • Power: Blue/White
  • Flashing White: Bootup in Progress
  • Flashing Blue: Firmware Upgrading
  • Steady White: Factory Defaults, Awaiting Adoption
  • Steady Blue: Device is Adopted
• Ethernet LED:
  • Green: 1G
  • Amber: 10/100 Mbps
• PoE LED:
  • Amber: PoE+ Status
