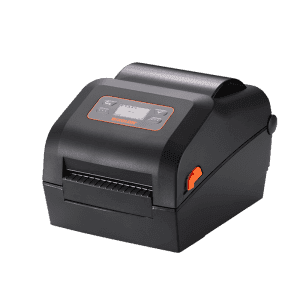

Bixolon XD5-40d Direct Thermal Desktop Label Printer

The XD5-40d is a 4-inch (118mm) mid-level Direct Thermal Desktop Barcode and Label Printer featuring a compact, clamshell design and comprehensive software features which is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries. Available as XD5-40d (203dpi) and XD5-43d (300dpi) resolution options, the XD5-40d’s standard model (XD5-40d) offers quick data processing and print speeds of up to 7 ips (178mm/sec), with enhanced memory space of up to 256MB SDRAM and 256MB Flash.

Accompanied with a field installable Peeler, Auto Cutter and an external paper supply, the label printer offers an optional visual LCD display, adjustable paper guide plus holder and space for a media roll diameter of up to 127mm. Complemented by its Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 2-year warranty as standard.

Supporting multiple connectivity options, the XD5-40d comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The XD5-40d is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file). Alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.

Product Features

• It is ideal for labelling applications within the Manufacturing, Transport and Logistics, Retail and Healthcare industries.
• XD5-40d Bixolon features a 203dpi resolution option for enhanced quality output.
• Bixolon offers quick data processing and print speeds of up to 7 ips, with enhanced memory space of up to 256MB SDRAM and 256MB Flash.
• Bixolon XD5-40d supports multiple connectivity options, it comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet.
• With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™
• The Bixolon XD5-40d label printer is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™
• The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file).

Product Specifications

• Print Method: Thermal Transfer, Direct Thermal
• Print Speed: XD5-40d: Up to 7 ips (178 mm/sec)
• Print Resolution: 203 dpi
• Print Length: Up to 1,000 mm
• Sensor: Transmissive(Fixed), Reflective(Adjustable), Head Open
• Media Width: 15~118mm
• Media Roll Diameter: Up to 127mm
• Media Thickness: 0.06 ~ 0.20 mm
• Inner Core: 25.4 ~ 38.1mm
• Ribbon Type: Wax, Wax/Resin, Resin, Outside
• Ribbon Width: 33 ~ 110 mm
• Ribbon Length: Up to 300 m
• Core Inner Diameter: 25.4 mm, 12.7 mm
• Display: NoneOptional: FSTN LCD (200 x 100 pixels)
• Memory: STD:64 MB SDRAM, 128 MB FlashOptional: ① 64 MB SDRAM, 128 MB Flash ② 256 MB SDRAM, 256 MB Flash
• Interface: Standard: USB +USB HostOptional: ① USB+USB Host+Serial+Ethernet ② USB+USB Host+Serial+Ethernet+WLAN ③ USB+USB Host+Serial+Ethernet+Bluetooth, WLAN: Built-in type, 802.11a/b/g/n (2.4G and 5G)Bluetooth: Built-in type, V4.2 Classic / LE, Class 1, MFi certifiedEthernet: 10/100Mbps
• Fonts: 10 SLCS™ / One SLCS™ / 16 BPL-Z™ / One BPL-Z™ / 5 BPL-E™ / 23 Code Page / Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
• Standard: USB cable
• Weight: 1.89kg
