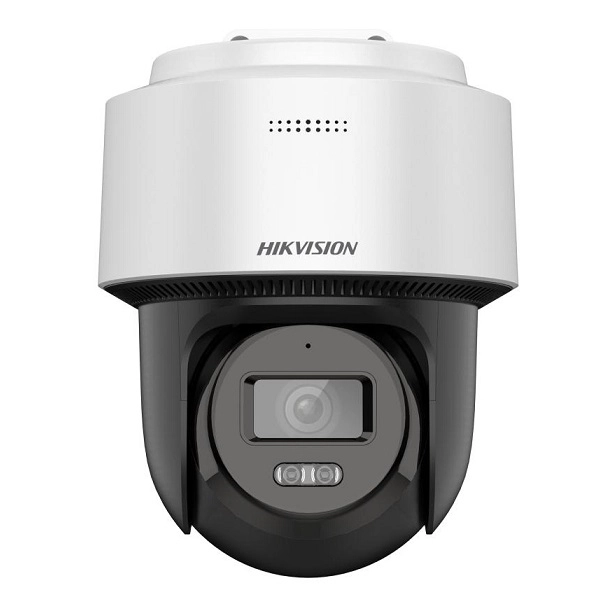

Hikvision DS-2DE2C400MWG-E 4MP PT Network Camera

The Hikvision DS-2DE2C400MWG-E 4MP PT Network Camera is a high-performance pan-tilt security camera designed for superior surveillance in indoor and outdoor environments. Featuring a 4MP high-resolution sensor, advanced H.265+ video compression, and smart motion detection, this network camera delivers clear, detailed footage with optimized bandwidth efficiency. Its pan-tilt capability provides wide-area coverage, while infrared (IR) night vision ensures 24/7 security monitoring. With Wi-Fi and Ethernet connectivity options, this camera is ideal for homes, offices, and commercial applications.

Product Features

4MP Ultra HD Resolution for Superior Clarity

Equipped with a 4MP sensor (2560 × 1440), the camera delivers crisp, high-definition video with enhanced detail, making it perfect for security-critical areas.

Pan-Tilt Function for Wide-Angle Surveillance

The motorized pan and tilt mechanism allows for flexible coverage, ensuring that no corner is left unmonitored. The camera can be remotely controlled to adjust its viewing angle.

H.265+ Video Compression for Efficient Storage

The H.265+ video compression significantly reduces bandwidth and storage requirements while maintaining high-quality video output, allowing for longer recording times.

Infrared Night Vision for 24/7 Monitoring

Built-in IR LEDs enable the camera to capture clear footage in low-light and complete darkness, with an effective night vision range of up to 30 meters.

Smart Motion Detection & Instant Alerts

The camera supports intelligent motion detection, which can differentiate between human movement and other motion events. Real-time notifications are sent via the Hikvision mobile app.

Wi-Fi & Ethernet Connectivity for Flexible Setup

With both Wi-Fi and Ethernet options, this camera offers seamless connectivity to your network, allowing for easy installation in various environments.

Two-Way Audio for Real-Time Communication

The built-in microphone and speaker enable two-way audio communication, allowing users to interact with visitors or warn intruders remotely.

Weatherproof & Durable Design

With an IP66-rated weatherproof housing, the camera is designed to withstand rain, dust, and extreme temperatures, making it ideal for both indoor and outdoor use.

Product Specifications

Camera

• Image Sensor1/3″ Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON),B/W: 0.005 Lux @ (F2.0, AGC ON),0 Lux with light

Lens

• Focal Length2.8 mm, 4 mm
• FOV

  2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°

  4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°

• ApertureF1.6

Illuminator

• Supplement Light TypeIR,White Light
• Supplement Light RangeWhite light distance: up to 30 m,IR distance: up to 30 m
• IR Wavelength850 nm

PTZ

• Movement Range (Pan)0° to 345°
• Movement Range (Tilt)0° to 80°
• Pan SpeedUp to 25°/s
• Tilt SpeedUp to 20°/s

Video

• Main Stream

  50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360)
• Video CompressionH.265, H.264, MJPEG
• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline profile,Main profile,High profile
• H.265 TypeMain profile

Audio

• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM//AAC-LC
• Audio Bit Rate16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM)
• Audio Sampling Rate8 kHz,16 kHz
• Environment Noise FilteringYes

Network

• ProtocolsIPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK


• Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone1 built-in microphone
• On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Speaker1 built-in speaker

Event

• Basic EventMotion detection (support alarm triggering by specified target type (human)), video tampering alarm, exception
• LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite

General

• Power

  12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

  PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W

• Dimension

  Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45″ × 7.31\” × 5.19\”)

  With package dimension: 224 mm × 164 mm × 230 mm (8.82 × 6.46\” × 9.06\”)”

• Weight

  Camera weight: 600 g (1.32 lb.)

  With package weight: 900 g (2.0 lb.)

• MaterialPlastic
• Operating Condition-30 °C to 40 °C (-22 °F to 104 °F). Humidity 90% or less (non-condensing)
• General FunctionMirror, password protection, watermark

Approval

• EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
• SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
• EnvironmentCE-RoHS (2011/65/EU),Reach (Regulation (EC) No 1907/2006)
• ProtectionIP66 (IEC 60529-2013)
