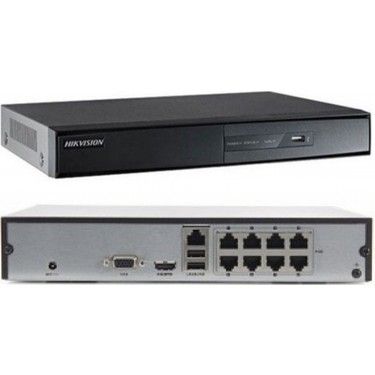

HIKVISION DS-7108NI-Q1/8P/M 8-ch Mini 1U 8 POE NVR

The Hikvision DS-7108NI-Q1/8P/M 8-Channel Mini 1U 8 PoE NVR is a powerful and compact network video recorder designed for small to medium-sized surveillance systems. Supporting up to 8 IP cameras, this NVR features 8 built-in Power over Ethernet (PoE) ports, enabling easy plug-and-play installation without the need for additional power supplies. It supports high-resolution recording up to 4K (8MP), ensuring clear and detailed video footage. With H.265+ compression, the system efficiently manages storage while maintaining high-quality video streams. The remote access feature via Hik-Connect allows users to monitor their security system from anywhere, making it an ideal choice for homes, offices, retail stores, and small businesses.

Product Features

8-Channel IP Camera Support with Built-in 8 PoE Ports

This NVR supports up to 8 IP cameras, with 8 PoE ports for direct power and data transmission over a single Ethernet cable, simplifying installation.

High-Resolution Video Recording up to 4K (8MP)

Capable of recording at up to 4K resolution, delivering exceptional video clarity and ensuring high-quality surveillance footage.

H.265+ Compression for Efficient Storage Management

Advanced H.265+ compression technology reduces bandwidth and storage usage, allowing for longer recording durations without sacrificing video quality.

Plug & Play Installation with Auto Camera Detection

With PoE plug-and-play functionality, the NVR automatically detects connected cameras, making setup fast and easy.

Dual HDMI & VGA Output for Clear Video Playback

Supports both HDMI and VGA video outputs, providing up to 1920×1080 resolution for high-quality playback on connected monitors.

Smart Search & Playback for Easy Event Review

The smart playback feature allows for quick searching of motion-triggered events, saving time in reviewing security footage.

Remote Access via Hik-Connect App & Web Browser

Supports Hik-Connect and web-based access, allowing users to monitor live feeds and playback recordings remotely from their smartphone, tablet, or PC.

Multiple Recording Modes for Customizable Security

Users can select from continuous, motion detection, scheduled, or event-based recording, optimizing storage usage and surveillance efficiency.

Compact 1U Rackmount Design for Flexible Installation

The space-saving mini 1U form factor makes this NVR easy to install in various environments, including desktops, security cabinets, and small racks.

Product Specifications

Video and Audio

• IP Video Input

  8-ch

  Up to 6 MP resolution

• Incoming Bandwidth60 Mbps
• Outgoing Bandwidth60 Mbps
• HDMI Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output

Decoding

• Decoding FormatH.265+/H.265/ H.264+/H.264
• Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback4-ch
• Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
• Stream TypeVideo, Video & Audio

Network

• Remote Connection16
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
• Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 75 W
• standardise 802.3 af/at

Auxiliary Interface

• SATA1 SATA interface
• capacity up to 6TB capacity for each disk
• Alarm In/OutN/A
• USB InterfaceRear panel: 2 × USB 2.0

General

• Power Supply48 VDC, 1.8 A
• Consumption≤ 10 W
• Working Temperature-10 to +55º C (+14 to +131º F)
• Working Humidity10% to 90%
• Dimension (W × D × H)265 × 223 × 48 mm (10.4″ × 8.8″ × 1.9″)
• Weight≤ 1 kg (2.2 lb)

Certification

• CEEN50130-4, EN 61000-3-2,EN 61000-3-3
