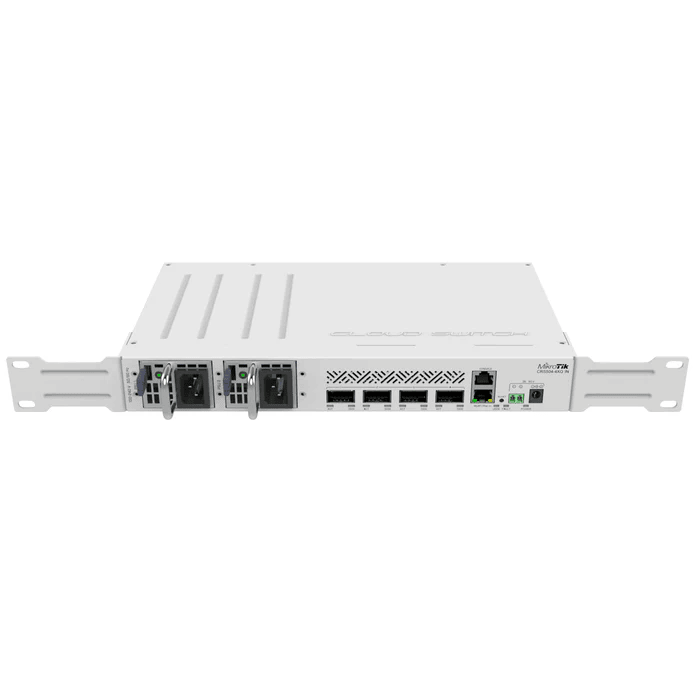

MikroTik CRS504-4XQ-IN 4-Port 100G QSFP28 Cloud Router Switch

The MikroTik CRS504-4XQ-IN is a compact high-performance 100 Gigabit Ethernet Cloud Router Switch designed for data centers, enterprise networks, research environments and organizations upgrading from 10G or 25G infrastructure. Four 100G QSFP28 ports provide ultra-high-speed connectivity for servers, storage systems, switches and other network infrastructure while supporting flexible breakout configurations for lower-speed connections.

Powered by the Marvell 98DX4310 switch chip, the CRS504-4XQ-IN combines high-speed switching with VLANs, ACLs, Jumbo Frames and Layer 3 hardware offloading. Dual hot-swap AC power supplies, multiple DC powering options, 802.3bt PoE-in and low power consumption provide the flexibility and redundancy required for demanding network deployments.

Browse our complete range of Network Switches in Kenya, explore our collection of MikroTik Switches in Kenya, or discover more genuine MikroTik networking products through the MikroTik Online Store in Kenya. Rapidtech Networks Limited supplies genuine MikroTik switches backed by manufacturer warranty, professional installation, network configuration and comprehensive after-sales technical support throughout Kenya.

MikroTik CRS504-4XQ-IN 100G Cloud Router Switch Features in Kenya

Four 100G QSFP28 Ports

The CRS504-4XQ-IN provides 4 × 100 Gigabit QSFP28 ports for ultra-high-speed connections between servers, storage systems, aggregation switches and other compatible network infrastructure.

Flexible Multi-Speed Connectivity

The QSFP28 interfaces provide flexibility for networks operating at different speeds, supporting configurations involving 100G, 40G, 25G, 10G and 1G connectivity with appropriate compatible modules, cables and breakout solutions.

Up to 16 × 25G Connections

Using compatible QSFP28 breakout cables, the four 100G interfaces can provide connectivity for up to sixteen 25 Gigabit devices, making the switch useful for high-density server and storage deployments.

Marvell 98DX4310 Switch Chip

The high-performance Marvell 98DX4310 switch chip provides hardware-based traffic processing for demanding network environments while supporting advanced switching functionality.

Layer 3 Hardware Offloading

Layer 3 hardware offloading enables supported routing functions to be processed by the switch chip rather than relying entirely on the CPU, improving performance for compatible high-speed routed network configurations.

VLAN and ACL Support

Support for VLANs and Access Control Lists (ACLs) provides administrators with greater control over network segmentation and traffic handling across enterprise, data center and service-provider environments.

Jumbo Frame Support

Jumbo Frame support can improve efficiency when transferring large amounts of data between compatible servers, storage systems and other high-performance network equipment.

Dual Hot-Swap Power Supplies

The CRS504-4XQ-IN features dual hot-swap AC power supplies, providing power redundancy for critical network environments and allowing a power supply to be replaced without unnecessarily interrupting switch operation when redundancy is maintained.

Multiple Power Input Options

In addition to AC power, the switch provides DC jack, 2-pin terminal and PoE-in powering options, giving network administrators greater flexibility when integrating the device into different power infrastructures.

802.3bt PoE-in Support

The Ethernet power input supports IEEE 802.3bt PoE-in at 43–57V, providing another convenient option for powering the switch in compatible installations.

Energy-Efficient 100G Networking

Power consumption is approximately 25W without attachments, helping provide high-speed 100G connectivity without the considerably higher base power requirements associated with some larger switching platforms.

Dedicated Management Connectivity

A dedicated 10/100 Mbps Ethernet port and RJ45 serial console provide convenient interfaces for switch administration, configuration and troubleshooting.

Integrated System Monitoring

Built-in temperature and voltage monitoring provides administrators with important information about operating conditions, helping maintain reliable performance in demanding installations.

Compact Indoor Design

Measuring approximately 320 × 185 × 44 mm, the CRS504-4XQ-IN provides substantial network capacity in a compact enclosure suitable for data centers, server rooms and other space-conscious deployments.

MikroTik CRS504-4XQ-IN 100G Cloud Router Switch Specifications in Kenya

• Brand: MikroTik
• Model: CRS504-4XQ-IN
• Product Code: CRS504-4XQ-IN
• Switch Type: 100 Gigabit Cloud Router Switch
• Architecture: MIPSBE
• CPU: QCA9531
• CPU Frequency: 650 MHz
• CPU Cores: 1
• Switch Chip: Marvell 98DX4310
• Operating System: RouterOS v7
• RouterOS License: Level 5
• RAM: 64 MB
• Storage: 16 MB Flash
• QSFP28 Ports: 4 × 100G
• Breakout Support: Up to 16 × 25G connections
• Supported Network Speeds: 1G / 10G / 25G / 40G / 100G with compatible interfaces
• Management Ethernet: 1 × 10/100 Mbps
• Layer 3 Hardware Offloading: Supported
• VLAN Support: Yes
• ACL Support: Yes
• Jumbo Frame Support: Yes
• AC Inputs: 2
• AC Input Range: 100–240V AC
• Power Supplies: Dual Hot-Swap
• DC Inputs: DC Jack, 2-Pin Terminal and PoE-in
• PoE-in: IEEE 802.3bt
• PoE-in Voltage: 43–57V
• Maximum Power Consumption: 41W
• Power Consumption Without Attachments: 25W
• Cooling: Active, 2 Fans
• Serial Console: RJ45
• Temperature Monitor: Yes
• Voltage Monitor: Yes
• Dimensions: 320 × 185 × 44 mm
• Wall Mounting: Supported
• Tested Ambient Temperature: -40°C to 70°C
• MTBF: Approximately 200,000 hours at 25°C
• IP Rating: IP20
• Certifications: CE, EAC, RoHS

Applications of MikroTik CRS504-4XQ-IN 100G Cloud Router Switch

• 100 Gigabit Ethernet network deployments
• Data centers and server rooms
• Enterprise network backbone and aggregation
• 10G and 25G network infrastructure upgrades
• High-speed server and storage connectivity
• Research and scientific computing networks
• High-volume data processing environments
• Service provider and high-capacity network infrastructure

Buy MikroTik CRS504-4XQ-IN 100G Cloud Router Switch in Kenya

Buy the MikroTik CRS504-4XQ-IN 4-Port 100G QSFP28 Cloud Router Switch from Rapidtech Networks Limited at the best price in Kenya. We supply genuine MikroTik networking products backed by manufacturer warranty, competitive pricing and professional technical support.

We offer fast countrywide delivery to Nairobi, Mombasa, Kisumu, Nakuru, Eldoret, Thika, Kiambu, Machakos, Nyeri, Meru, Embu, Kakamega, Kisii, Kitale, Naivasha, Kericho, Bungoma, Garissa, Malindi and other towns throughout Kenya.

Our team also provides professional switch installation, Ethernet network setup, structured network integration and comprehensive after-sales technical support to ensure reliable long-term network performance.
