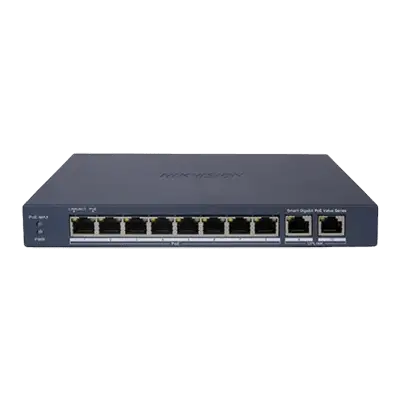

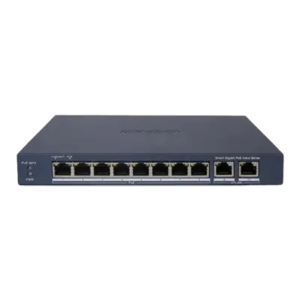

Hikvision 8 Port Gigabit Smart POE Switch (DS-3E1510P-SI)

The Hikvision DS-3E1510P-SI 8-Port Gigabit Smart PoE Switch is a professional networking solution designed for IP surveillance systems, security networks, and enterprise applications. This intelligent Power over Ethernet (PoE) switch provides high-speed data transmission and power supply to connected devices, eliminating the need for separate power sources. With 8 Gigabit PoE ports and 2 additional uplink ports, advanced network management features, and a durable metal housing, the DS-3E1510P-SI ensures reliable, secure, and efficient data communication for IP cameras, wireless access points, and other PoE-enabled devices.

Product Features

8 Gigabit PoE Ports + 2 Uplink Ports

Equipped with 8 Gigabit PoE ports for seamless connectivity and 2 additional uplink ports for high-speed data transmission and network expansion.

Power Over Ethernet (PoE) Support

Provides intelligent PoE power supply for IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices, reducing the need for extra power adapters.

Smart Power Management and Protection

Features overload protection, short circuit prevention, and intelligent power allocation, ensuring safe and stable operation.

High-Speed Gigabit Performance

Delivers fast and stable data transfer speeds, optimizing surveillance streaming, data transmission, and remote access performance.

Advanced VLAN and QoS Features

Supports VLAN segmentation for network security and QoS (Quality of Service) management for prioritizing critical data traffic.

Plug-and-Play Installation

No complex configuration is required—simply connect devices and start operating immediately, making it ideal for small to medium-sized networks.

Rugged Metal Housing for Durability

The robust metal design ensures heat dissipation and long-term durability, making it suitable for continuous 24/7 operation in demanding environments.

Product Specifications

General

• ShellMetal material
• Net Weight 1.21 kg (2.67 lb)
• Gross Weight 1.3 kg (2.87 lb)
• Dimensions (W × H × D)217.60 mm × 27.80 mm × 108.55 mm (8.57” × 1.09” × 4.27”)
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity 5% to 95% (no condensation)
• Relative Humidity 5% to 95% (no condensation)
• Power Supply48 VDC, 2.5 A
• Installation Mode: Desk-Mounted, Wall-Mounted
• Max.. Power Consumption 120 W
• Power Consumption in Idle7 W
• Surge Protection6 KV

Network Parameters

• Ports8 × Gigabit PoE port,2 × Gigabit fiber optical port
• MAC Address Table 8 K
• Switching Capacity20 Gbps
• Packet Forwarding Rate 14.88 Mpps
• Internal Cache4.1 Mbits

PoE Power Supply

• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power PinEnd-span: 1/2(+), 3/6(-);
• PoE Port PoE: Ports 1 to 8
• Max. Port Power30 W
• PoE Power Budget 110 W

Software Function

• Long Range

  Ports 1 to 8: up to 300 m.

  Long-range performance may vary depending on the camera model or cable condition.

• Port Isolation

  Ports 1 to 8: port isolation mode to improve network security.

  Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

• PoE Watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond.
• Link Aggregation

  Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

  Support static link aggregation.

  Support 8 aggregation groups.

• Loop Prevention

  Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

  Support 802.1D STP.

• QoS

  QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.

  Support port-based priority configuration.

  Support SP, WRR priority schedule mode.

• VLAN

  VLAN is used for network scale planning and network health improvement.

  Support 802.1Q.

  Configurable VLAN ID from 1-4094.

  Support Trunk, Access port mode.

  Support Max. 4094 VLAN.

• HPP

  Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

  1. Display the port rate.

  2. Display the port bandwidth utilization rate.

  3. Display the PoE power usage.

  4. Display topology information.

  5. Display the alarm status.

  6. Restart ports and devices.

  7. Enable port long-range mode.

  8. Remotely upgrade the device.

• System MaintenanceRemote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
• Port Rate-Limiting Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
• Storm Control

  Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication.

  Support port rate limiting based on broadcast, multicast, and unknown unicast packets.

Approval

• EMC

  FCC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);

  IC (ICES-003: Issue 6);

  RCM (ASNZS CISPR 32: 2015)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition);

  CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)

• Chemistry

  CE-RoHS (201165EU);

  WEEE (201219EU);

  Reach (Regulation (EC) No.19072006)
