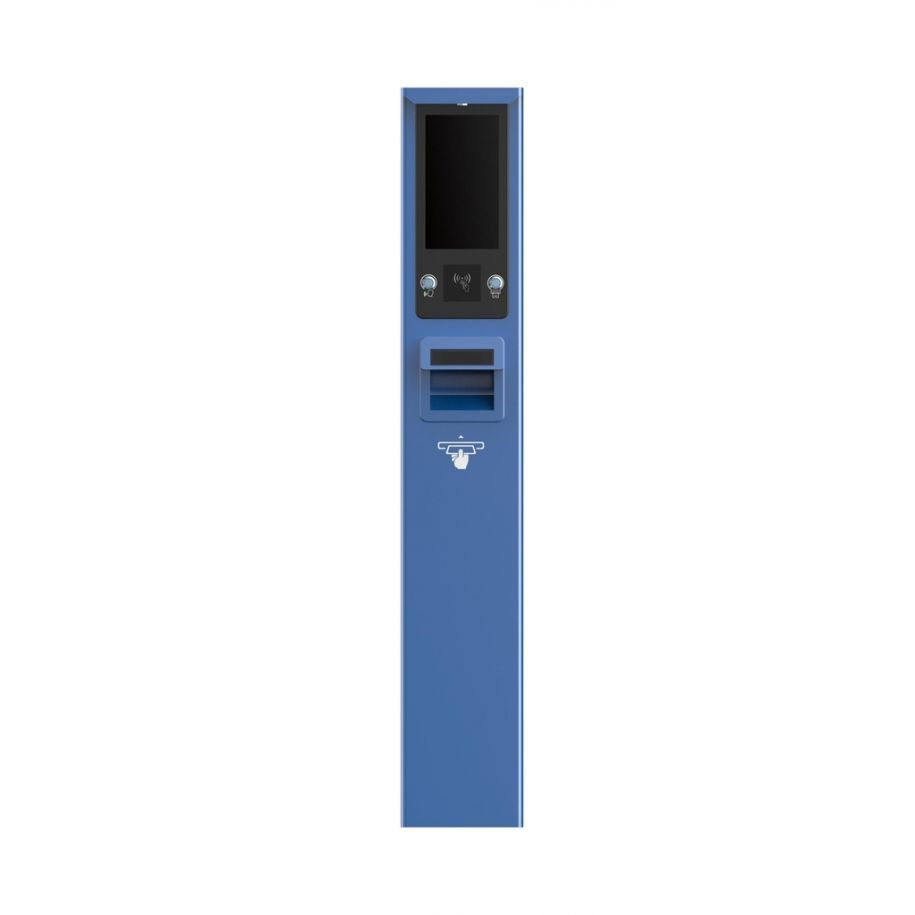

Hikvision DS-TMT201-D Entrance Ticket Station

The Hikvision DS-TMT201-D Entrance Ticket Station is an intelligent access control system designed to streamline ticket-based entry management for parking lots, event venues, toll stations, and secured facilities. This advanced ticket station provides a seamless and automated ticket issuance process, reducing congestion and improving operational efficiency. Featuring high-speed thermal printing, barcode and QR code recognition, and seamless system integration, the DS-TMT201-D ensures fast, secure, and reliable entry for authorized users. Built with durability and ease of use in mind, this ticket station is an ideal solution for high-traffic environments.

Product Features

Fast and Efficient Ticket Issuance

Equipped with a high-speed thermal printer, the DS-TMT201-D can quickly generate entry tickets, reducing wait times and enhancing overall efficiency.

Barcode and QR Code Scanning

The ticket station supports barcode and QR code recognition, allowing users to scan pre-issued tickets or digital codes for quick and seamless access.

Seamless Integration with Access Control Systems

Designed to work seamlessly with Hikvision parking management systems, access control platforms, and third-party security solutions, the DS-TMT201-D provides comprehensive entry management with real-time monitoring and reporting

User-Friendly Interface

The station features a clear display screen and intuitive interface, ensuring ease of use for visitors and drivers accessing secured areas.

Durable and Weatherproof Construction

Built with high-quality, weather-resistant materials, the DS-TMT201-D is designed to withstand outdoor environments, making it ideal for both indoor and outdoor installations.

Flexible Payment and Validation Options

Supports multiple payment and validation methods, including manual verification, prepaid tickets, and integration with automated payment systems, making it adaptable to different access control needs.

Remote Monitoring and Management

The system allows for remote monitoring and management, enabling operators to track ticket issuance, monitor system health, and configure settings through a centralized control interface.

Product Specifications

Printer

• Print Modethermal printing
• Paper Width57mm
• Roll Outside Diameter150 mm
• Roll Inside Diameter12±1 mm
• RemarksThe length of ticket depends on the contents you set, the upper margin is 1.5cm, the bottom margin is 1cm

Audio

• Audio Encoding G.711U
• Audio Bit Rate 64 Kbps
• Audio InputAll-directional microphone
• Audio Output loudspeaker 5.5W
• Audio QualityEcho suppression, Noise cancellation
• Two-Way Audio ModeFull duplex two-way voice intercom

Network

• Interface Protocol TCP/IP

Display Screen

• Screen Type 10.1 inch LCD screen 1080P

Interface

• Alarm Input2
• Alarm Output2
• Network Interface10 M/100M self-adaption × 1

Card Reader

• Card Reader TypeIC card, CPU card
• Card Reader Frequency 13.56MHz

General

• Working Temperature and Humidity

  -40°C ~ 70°C

  10% ~ 95%

• Power Supply220V 50Hz
• Power Consumption<100W 220VAC
• Dimensions230 × 248 × 1386 mm (9.06 × 9.76 × 54.57 inch)
• Weight 16.86 kg (37.17 lb.)
• Weight (with Package)19.51 kg (43.01 lb.)
• Dimensions (with Package)320 × 360 × 1492 mm (12.6 × 14.17 × 58.74 inch)
• Operating System Embedded Linux System
