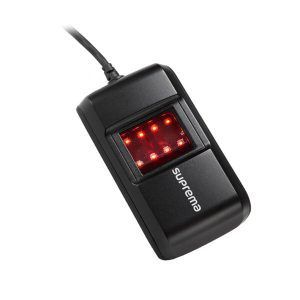

Suprema BioMini Slim 3 Ultra-Slim FAP30 Fingerprint Scanner

The Suprema BioMini Slim 3 is an ultra-slim, high-performance optical fingerprint scanner, designed to meet the latest biometric standards with FBI PIV and FBI Mobile ID FAP30 certifications. Ideal for desktop and mobile authentication applications, it features advanced MDR (Multi Dynamic Range) technology for accurate image capture even under direct sunlight and supports Live Finger Detection (LFD) to guard against spoofing. With a rugged IP65-rated sensor surface and exceptional image quality, the BioMini Slim 3 is engineered for dependable performance in demanding environments such as law enforcement, healthcare, banking, and more.

Product Features

Ultra-Slim FAP30-Compliant Optical Sensor

BioMini Slim 3 is the world’s thinnest fingerprint scanner in its class. Despite its compact design, it features a platen size of 21.5 x 26.5 mm—larger than the FBI’s FAP30 standard of 20.32 x 25.4 mm—ensuring superior image acquisition.

FBI PIV and FAP30 Certified

Certified by the FBI for PIV (FIPS 201) and Mobile ID FAP30 compliance, the device guarantees image quality and interoperability with government and civil ID systems worldwide.

Multi Dynamic Range (MDR) Technology

Suprema’s proprietary MDR technology ensures accurate fingerprint acquisition in extreme lighting conditions. It captures clear fingerprint images even under 100,000 lux—equivalent to direct sunlight—surpassing traditional HDR methods.

Advanced Live Finger Detection (LFD)

The BioMini Slim 3 includes hardware-based LFD to effectively distinguish between live fingers and spoof attempts using fake fingerprints made of materials such as silicon or rubber.

IP65-Rated Sensor Surface

The scanner’s optical sensor surface is dust- and waterproof (IP65-rated), making it suitable for indoor or semi-outdoor use in rugged environments such as mobile verification stations and field offices.

Optimized for Integration and Development

With broad SDK support and compatibility with major operating systems including Windows, Linux, and Android, BioMini Slim 3 simplifies biometric system integration for developers and system integrators.

Product Specifications

• Processor: MIPS-Base Xburst Core, up to 1.0 GHz
• RAM: 32 MB LPDDR
• Flash Memory: 16 MB NOR Flash
• Sensor Type: Optical
• Resolution: 500 ppi, 256 grayscale levels
• Platen Size: 21.5 mm x 26.5 mm
• Sensing Area: 20.32 mm x 25.4 mm
• Image Size: 400 x 500 pixels
• Image Standards: FBI PIV / FIPS 201, FBI Mobile ID FAP30
• Template Format: Suprema, ISO 19794-2, ANSI 378
• Image Format: RAW, BMP, WSQ, ISO 19794-4
• Live Finger Detection: Supported
• IP Rating: IP65 (sensor surface)
• Interface: USB 2.0 High Speed
• Operating Temperature: -10°C to 50°C
• Operating Humidity: 0% to 90% RH (non-condensing)
• Certifications: CE, FCC, KC, RoHS, USB-IF, CB, IEC62471, WEEE, REACH, WHQL
• Dimensions: 83 mm x 45.9 mm x 20 mm
• Weight: 111 g

Compatibility

• Operating Systems:
  • Windows 7/8/8.1/10 (32/64-bit)
  • Linux (Ubuntu, Debian, Fedora, OpenSUSE, CentOS – 32/64-bit)
  • Android 5.0 or higher (with USB Host support)

Applications

• PC and network security
• Smartcard integration
• Time and attendance systems
• Government and public sector authentication
• Healthcare patient ID systems
• Telecommunication KYC solutions
• Banking and finance customer onboarding
• POS, mPOS, ATM, and self-service kiosks
• Enterprise workforce management systemsBottom of Form
