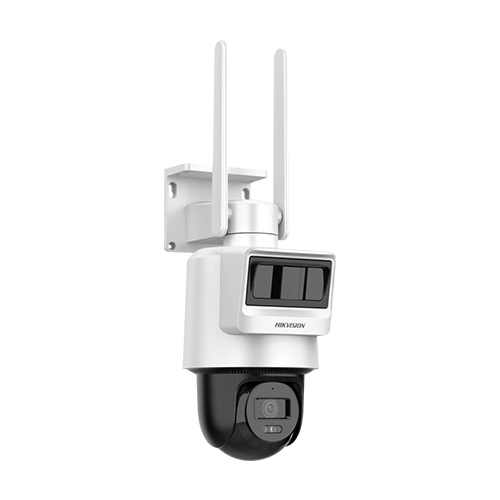

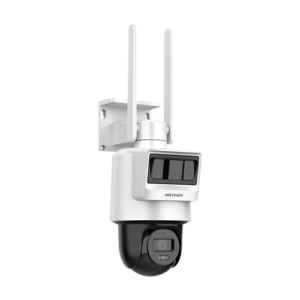

Hikvision DS-2DE2C200IWG-K/4G/C05S10 2MP Pro Solar-Powered Security PT Camera

The Hikvision DS-2DE2C200IWG-K/4G/C05S10 2MP Pro Solar-Powered Security PT Camera is a cutting-edge surveillance solution designed for remote and off-grid locations. This professional-grade PT (Pan-Tilt) camera combines high-definition imaging, advanced motion detection, and smart security features, all powered by solar energy. With a built-in 4G network module, it ensures seamless connectivity even in areas without traditional internet access. Designed to withstand harsh outdoor conditions, this camera is ideal for farms, construction sites, and remote security monitoring.

Product Features

High-Resolution 2MP Camera

Equipped with a 2-megapixel sensor, the camera delivers crisp and clear 1080p Full HD video, ensuring detailed footage for effective surveillance.

Solar-Powered with Built-in Battery

This camera operates entirely on solar energy, featuring an efficient solar panel and a high-capacity rechargeable battery. It provides continuous surveillance even in low-sunlight conditions.

4G LTE Connectivity for Remote Monitoring

With an integrated 4G LTE module, the camera offers reliable remote access and real-time viewing from anywhere, eliminating the need for Wi-Fi or wired internet.

Pan-Tilt Function for Wide-Angle Coverage

The PT function allows the camera to pan and tilt, covering a broader surveillance area and reducing blind spots for enhanced security monitoring.

Smart Motion Detection & Alerts

Advanced motion detection technology instantly notifies users of any unusual activity, ensuring prompt action against potential threats.

Night Vision with Infrared Technology

The powerful infrared (IR) night vision enables the camera to capture clear footage in complete darkness, providing round-the-clock security.

Weatherproof Design for Outdoor Durability

Built to withstand harsh weather conditions, this camera features an IP66-rated weatherproof housing, ensuring reliable performance in rain, dust, and extreme temperatures.

Two-Way Audio for Real-Time Communication

The built-in microphone and speaker allow for real-time two-way communication, making it easy to interact with visitors or deter intruders.

Applications

• Perimeter Security: Ideal for perimeter security applications around homes, businesses, and other properties.
• Remote Surveillance: Provides remote monitoring capabilities for remote locations and areas with limited network infrastructure.
• Construction Sites: Monitors construction sites and other outdoor areas for security and safety.
• Wildlife Monitoring: Can be used for wildlife observation and monitoring in remote locations.

Product Specifications

• Camera
• Image Sensor1/2.7″ Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter

• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°

  4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6

• PTZ
• Movement Range (Pan)0° to 340°
• Movement Range (Tilt)0° to 80°
• Pan SpeedUp to 25°/s
• Tilt SpeedUp to 25°/s

DORI

• DORI

  2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m

  4 mm, D: 100 m, O: 39 m, R: 20 m, I: 10 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm

Video

• Main Stream

  50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Region of Interest (ROI)1 fixed region for main stream

Audio

• Audio TypeMono sound
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes
• Audio CompressionG.722.1/G.711/MP2L2/PCM/G.726/AAC-LC
• Audio Bit Rate16 Kbps(G.722.1)/64 Kbps(G.711ulaw/G.711alaw)/32~160 Kbps(MP2L2)/8~48 Kbps(PCM)/16 Kbps(G.726)/16~64 Kbps(AAC-LC)

Network

• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
• SecurityPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live ViewUp to 6 channels
• ProtocolsTCP/IP, DHCP, IPv4
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientHik-Connect,HikCentral Professional, Hik-Partner Pro
• Web BrowserLocal service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+

Mobile Communication

• StandardLTE-FDD,LTE-TDD,UMTS
• Frequency

  EU:

  LTE-FDD: B1/3/5/7/8/20/28

  IN:

  LTE-FDD: B1/3/5/8

  LTE-TDD: B34/38/39/40/41

  LA:

  LTE-FDD: B2/3/4/5/7/8/28/66

  NA:

  LTE-FDD: B2/4/5/12/13/17/66/71

  UMTS: B2/4/5

• Uplink and Downlink Data Rate

  EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps

  IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps

  LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps

  NA: uplink: 50 Mbps, downlink: 150 Mbps

• SIM Card TypeNano SIM


• Wide Dynamic Range (WDR)Digital WDR
• SNR≥ 52 dB
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Transducer

• Transducer TypePIR + Radar
• Detection AngleHorizontal: 80°, vertical: 30°
• Detection RangeUp to 12 m

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone1 built-in microphone
• Built-in Speaker1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
• Reset KeyYes

Event

• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• LinkageUpload to FTP/memory card, notify surveillance center, trigger recording, trigger capture, audible warning

General

• Power

  Power Consumption and Current:

  Typical power scenarios: 1.85 W (4G working)

  Standby scenarios: 80 mW

  Max. Power consumption: 7 W

  Power Supply: 12 VDC ± 25%

  *For debugging only

  10 W (deviation: ± 5%) Solar panels

  Power Interface:

  Power supply interface: four-core aviation connector

  Extened solar panel: four-core aviation connector

• Dimension133.1 mm × 177.64 mm × 382.44 mm/412.44 mm (5.24″ × 6.99″ × 15.06″/16.24″)
• MaterialPlastic
• Package Dimension375 mm × 305 mm × 398 mm (14.76″ × 12.01″ × 15.67″)
• WeightApprox. 850 g (1.87 lb.)
• With Package WeightApprox. 5400 g (11.88 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email

Battery

• Battery TypeTernary Lithium
• Cycle Lifetime

  27 hours (1.85 W)

  Full charge battery runtime without solar input.

• Battery Voltage9 V to 12.6 V
• Capacity50.76 Wh
• Max. Charging Voltage12.6 V
• Max. Output Voltage12.6 V
• Operating Temperature

  Charging: 0 °C to 45 °C (32 °F to 113 °F)

  Discharging: -20 °C to 55 °C (-4 °F to 131 °F)

• Battery LifeMore than 800 cycles

Approval

• RF

  CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)

  *CE certification is only for the device sold in the European region.

• EMC

  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,
